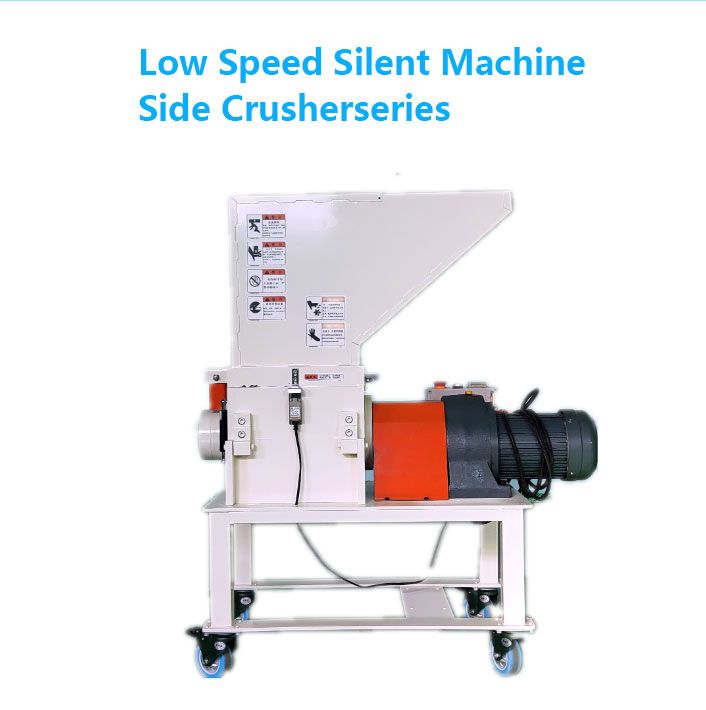

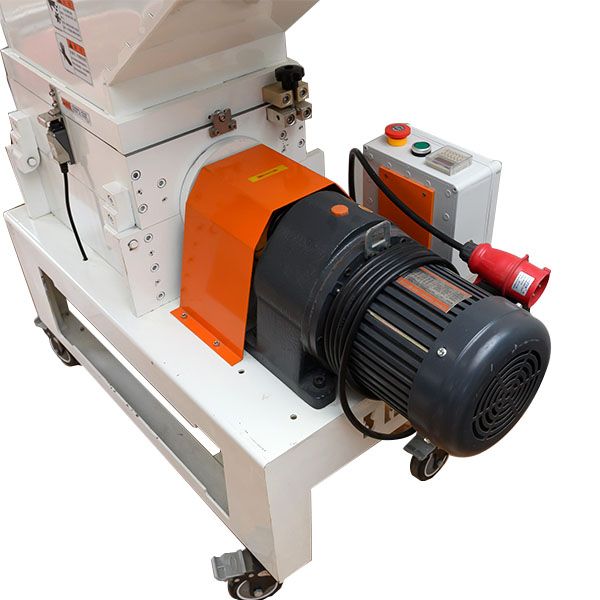

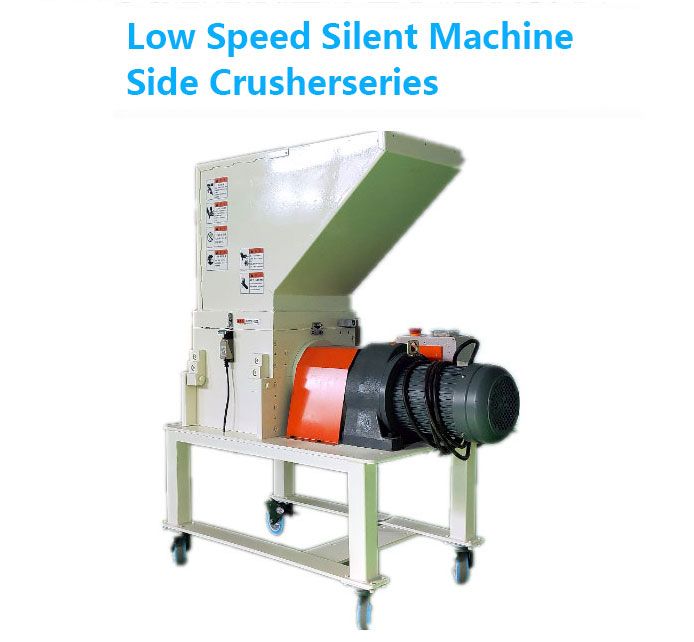

Name:crusing machine
Power:1.1KW,1.5KW
Rotary speed:23r/min
Product's details
Project | 1P | 2P | 3P | 4P |
Power | 1.1KW | 1.5KW | 2.2KW | 3.7KW |
Fixed knife | 6 | 6
| 8
| 8
|
Rotary knife | 2 | 2 | 3
| 3 |
Rotary speed | 23 R/min | 23 R/min | 23 R/min | 23 R/min |
Crushed particles | 5mm-6mm | 5mm-6mm | 5mm-6mm | 5mm-6mm |
Crushed capacity | 15—20（kg/h） | 20—25（kg/h） | 25—30（kg/h） | 30—35（kg/h） |
Input size （Length sidth） | 250*240mm | 315*315mm | 420*315mm | 430*380mm |
Body sizelength width height | 900*450*1200mm | 1100*500*1480mm | 1200*500*1560mm | 1200*550*1560mm |
Machine weight | 205kg | 275kg | 315kg | 350kg |
Show
Feature
1. Low rotation speed, large transmission torque, less dust and low noise
2. New claw cutting tools, adjustable free mobile blade design, after the re-grinding of the mobile knife clearance adjustment.
3. slow turn.
4. The design around the aggregate box outsourcing crushing chamber can effectively prevent the crushing material from leaking during crushing.
5. Optimized design, small body size, casters at the bottom, easy to move.
6. Slow speed and soundproof material box can effectively reduce the noise generated during crushing.
